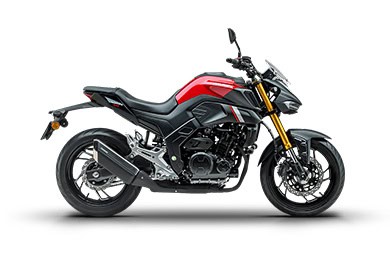

XCR300 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

124mL

Bore × Stroke :

56.5mm × 49.5mm

Optional color：

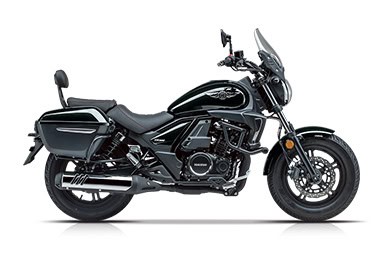

TR300 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

124mL

Bore × Stroke :

56.5mm × 49.5mm

Optional color：

DR300 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

124mL

Bore × Stroke :

56.5mm × 49.5mm

Optional color：

125CC

150CC

VX125

VX125 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

124mL

Bore × Stroke :

52.4mm × 57.9mm

Optional color：

UHR150

UHR150 View detail

TypeTwo Cylinder :

Water Cooling, Single Cylinder, 4-Stroke

Engine Displacement :

149mL

Bore × Stroke :

57.3mm×57.9mm

Optional color：

110CC

115CC

UD110

RICH110

HJ110-2

UD110 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

107mL

Bore × Stroke :

52.4mm × 49.5mm

Optional color：

RICH110 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

107mL

Bore × Stroke :

52.4mm × 49.5mm

Optional color：

HJ110-2 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

107mL

Bore × Stroke :

52.4mm × 49.5mm

Optional color：

UH115S

SPINNER115

UH115S View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

114mL

Bore × Stroke :

51mm × 55.6mm

Optional color：

SPINNER115 View detail

TypeTwo Cylinder :

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement :

114mL

Bore × Stroke :

51mm × 55.6mm

Optional color：

About Us

Company Profile Contact us

Services

Genuine Oil Genuine Parts Motorcycles Service Manual Quality Warranty Parts Catalogue

Dealers

Dealers information Join Haojue Family Dealers Store

News

Promotions Fair Donation

Language

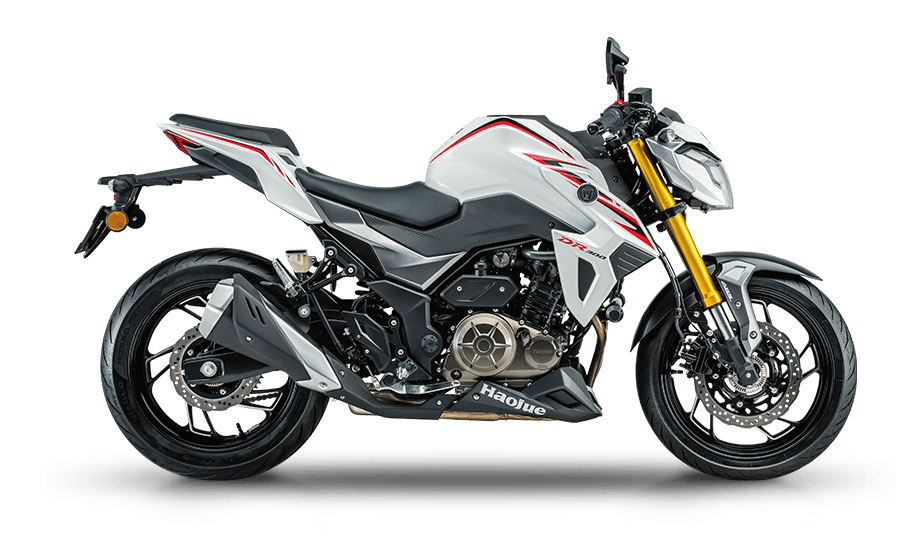

DR300

Ultra-modern styling Bringing Sci-Fi to Life

Overview

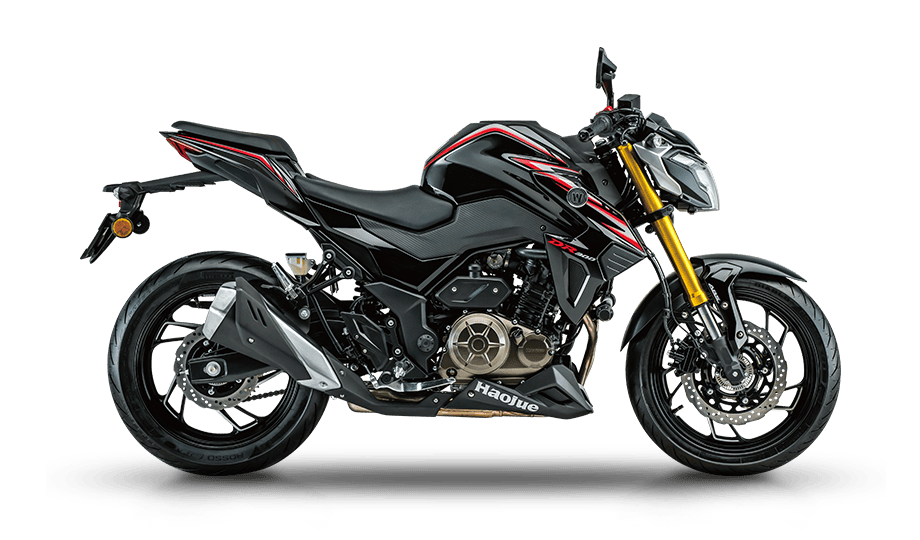

DR300

COLOR OPTIONS

Contact the dealer

Please consult the local dealer for details.

Specification

Construction

Dimensions (L×W×H)

2075mm × 720mm × 1050mm

Wheelbase

1420mm

Curb Mass

177kg

Ground Clearance

158mm

Seat Height

785mm

Fuel Tank Capacity

16L

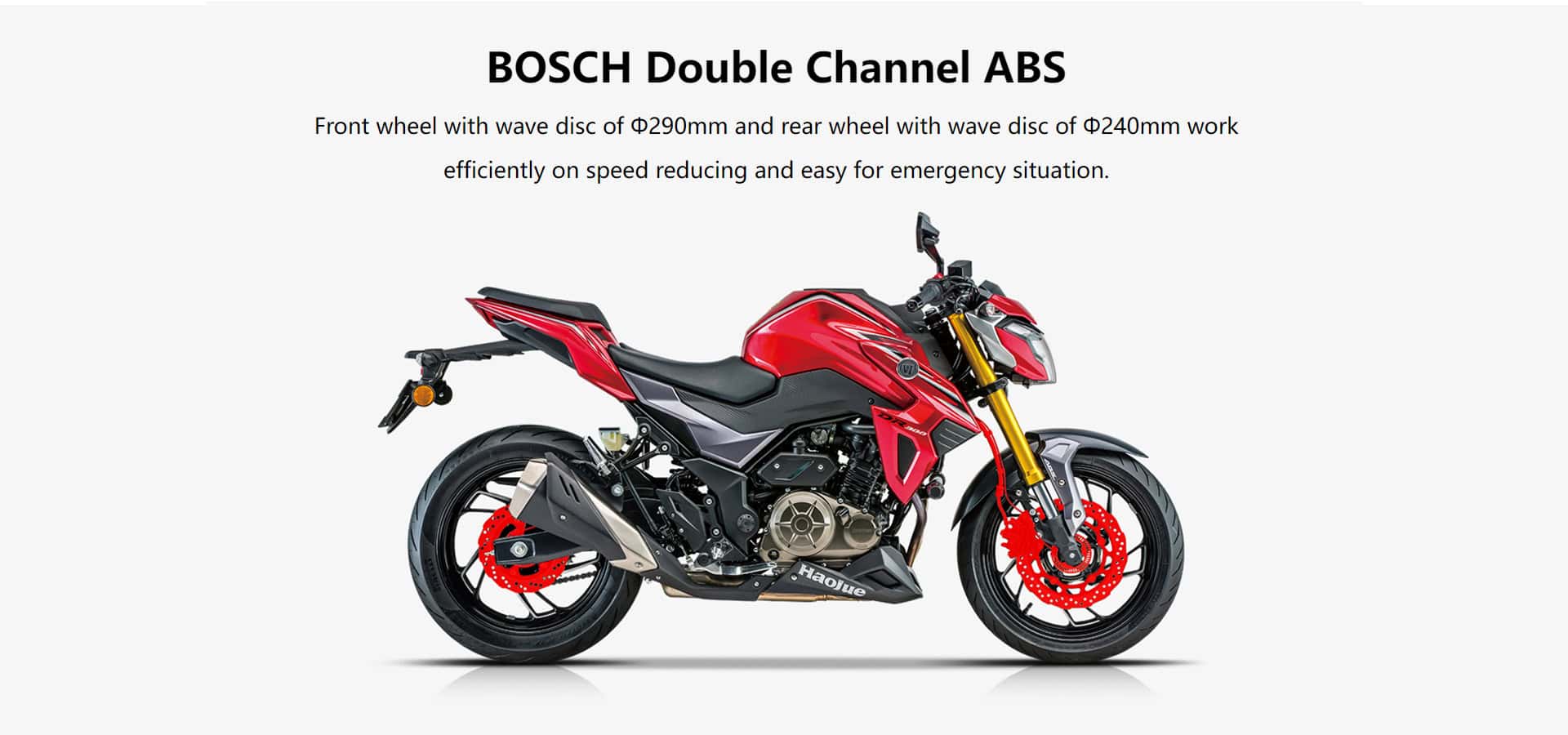

Brake Type

Front：Φ290mm disc brake Rear：Φ240mm disc brake

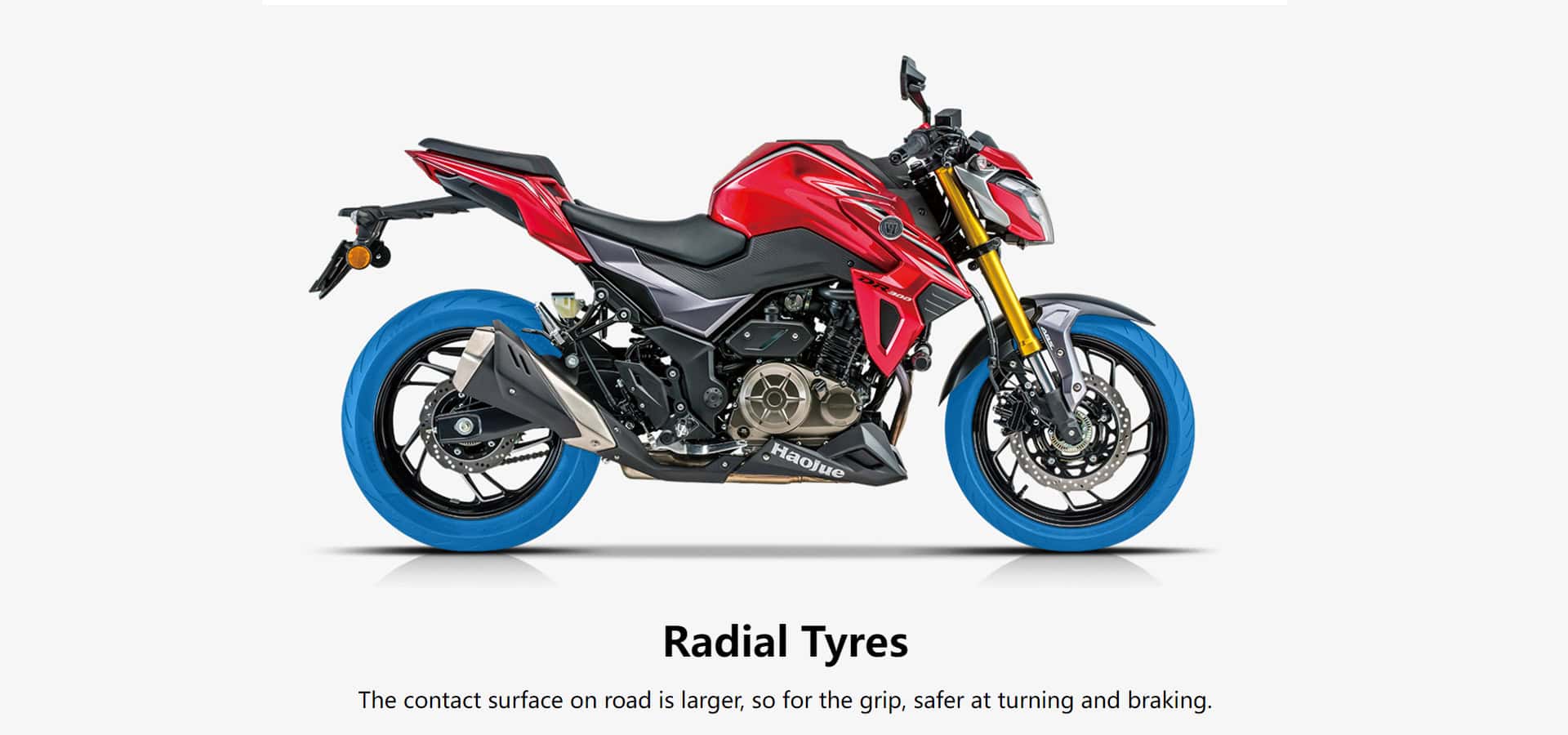

Tire Sizes

Front：110/70R17 Rear：140/70R17

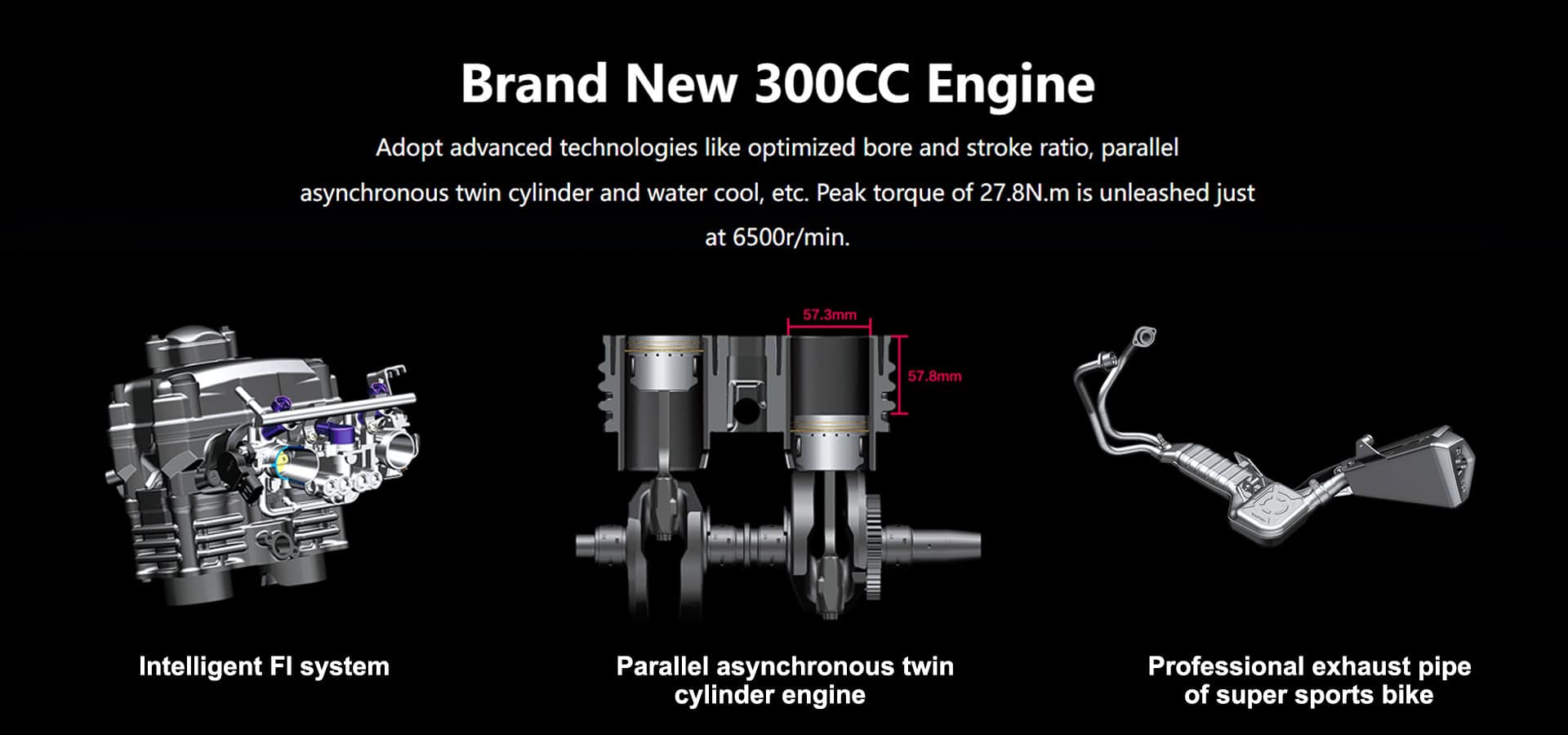

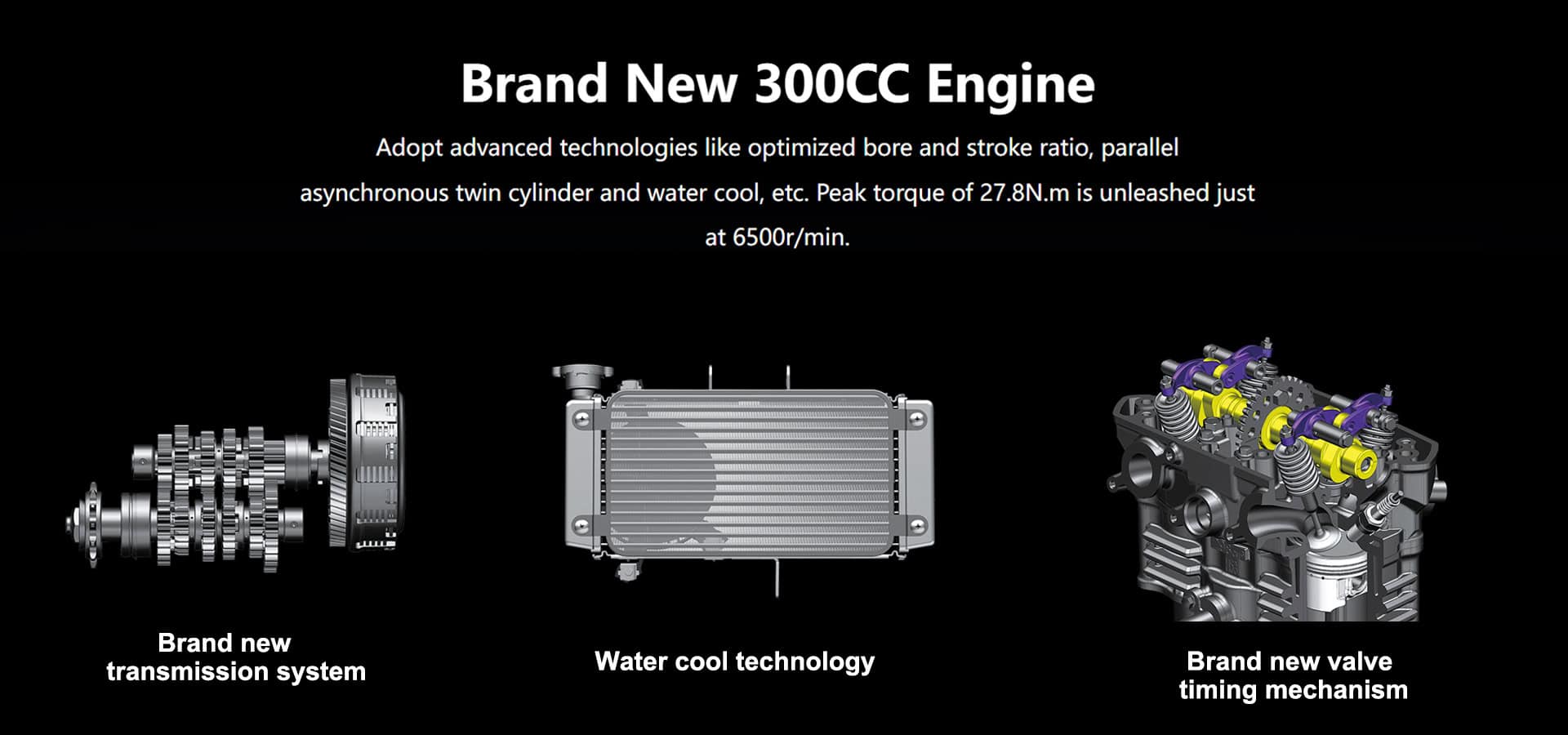

Engine

TypeTwo Cylinder

Water Cooling, 4-StrokeEngine

Engine Displacement

298mL

Bore × Stroke

57.3mm × 57.8mm

Compression Ratio

11.5:1

Maximum Power

21.5kW（8500r/min）

Maximum Torque

27.8N•m（6500r/min）

Fuel Supplying

Transmission

6-Speed, Return Shift

Starter

Electric

Ignition

TDI

Introduce

Key Features

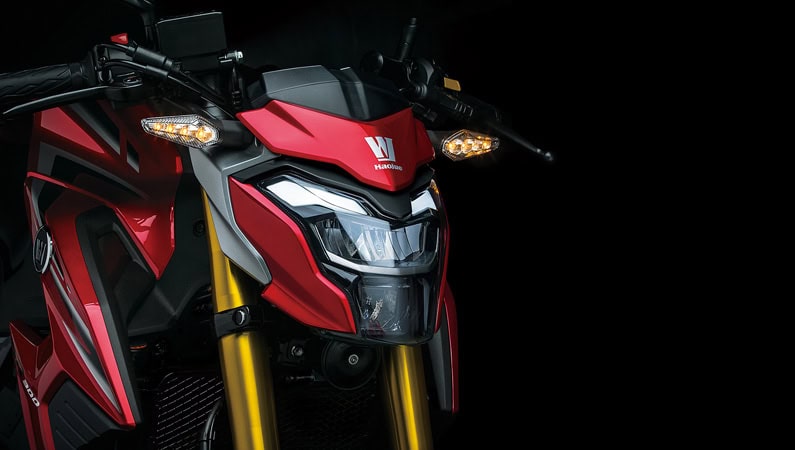

All LED lights

The high beam power of headlight reaches 19W, and its luminous intensity is more than twice as that of normal 35W halogen light. LED turnlights and taillight are more durable with less energy consumed.

All LED lights

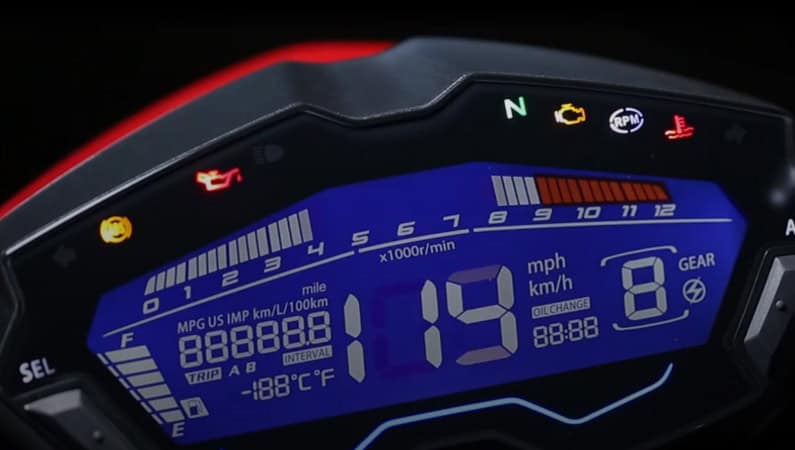

All Digital Negative Display LCD Meter

Clear and easy to identify info. even under sunlight. The time, temperature,fuel consumption, water temperature and engine oil replace reminding, etc are displayed.

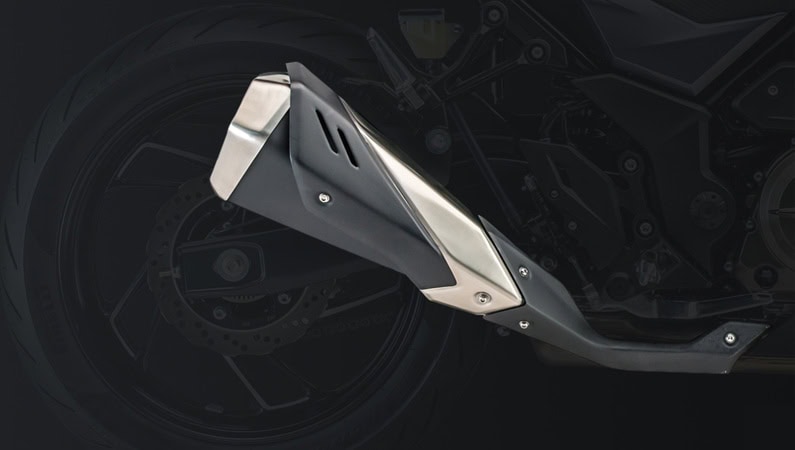

Muffler Made by Two Types of Metal

Made by two types of stainless steel, SUS304 and SUS409L, and matched with anti-scaled cover of two colors.

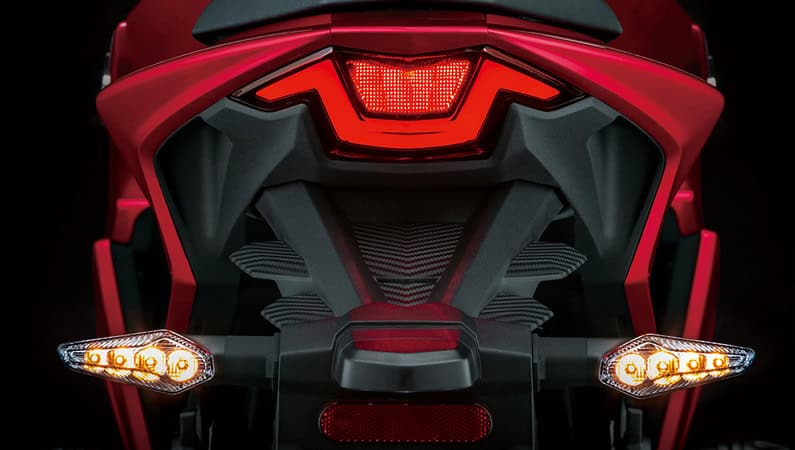

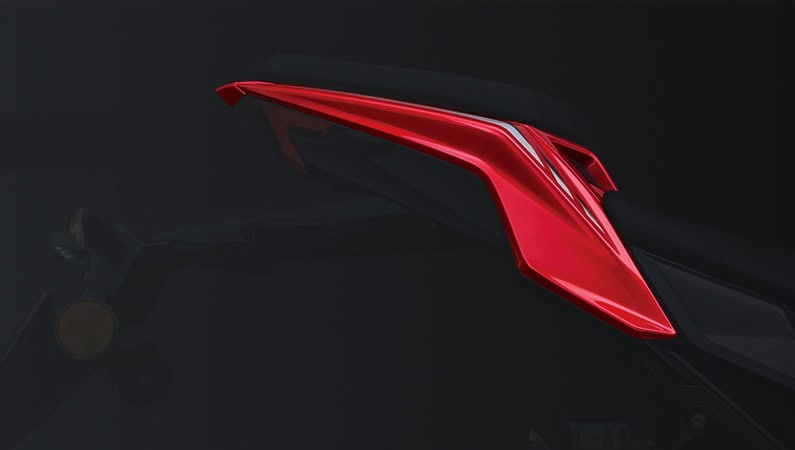

Sharp Tail Cover

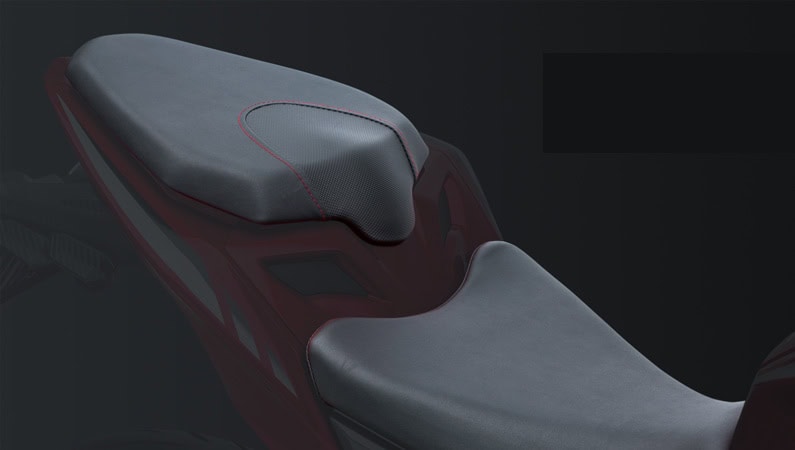

Separated Seat Pad
