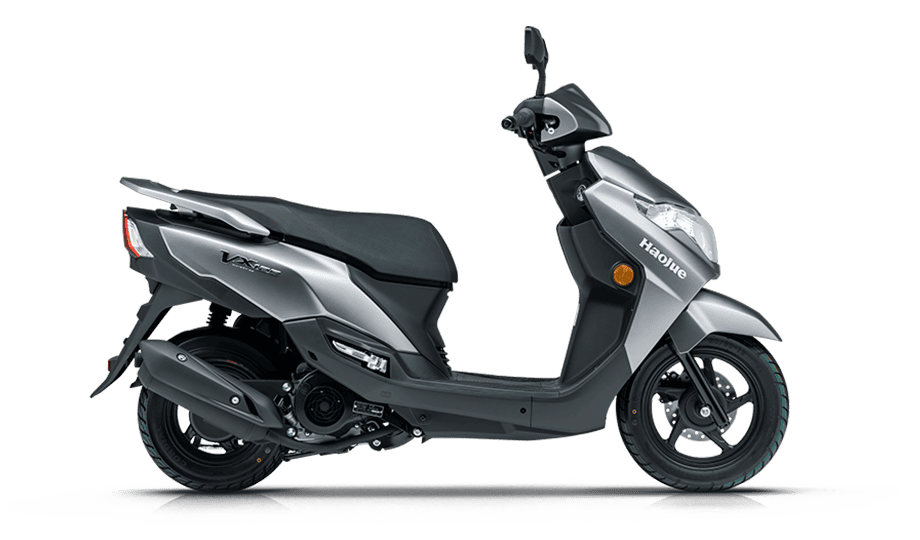

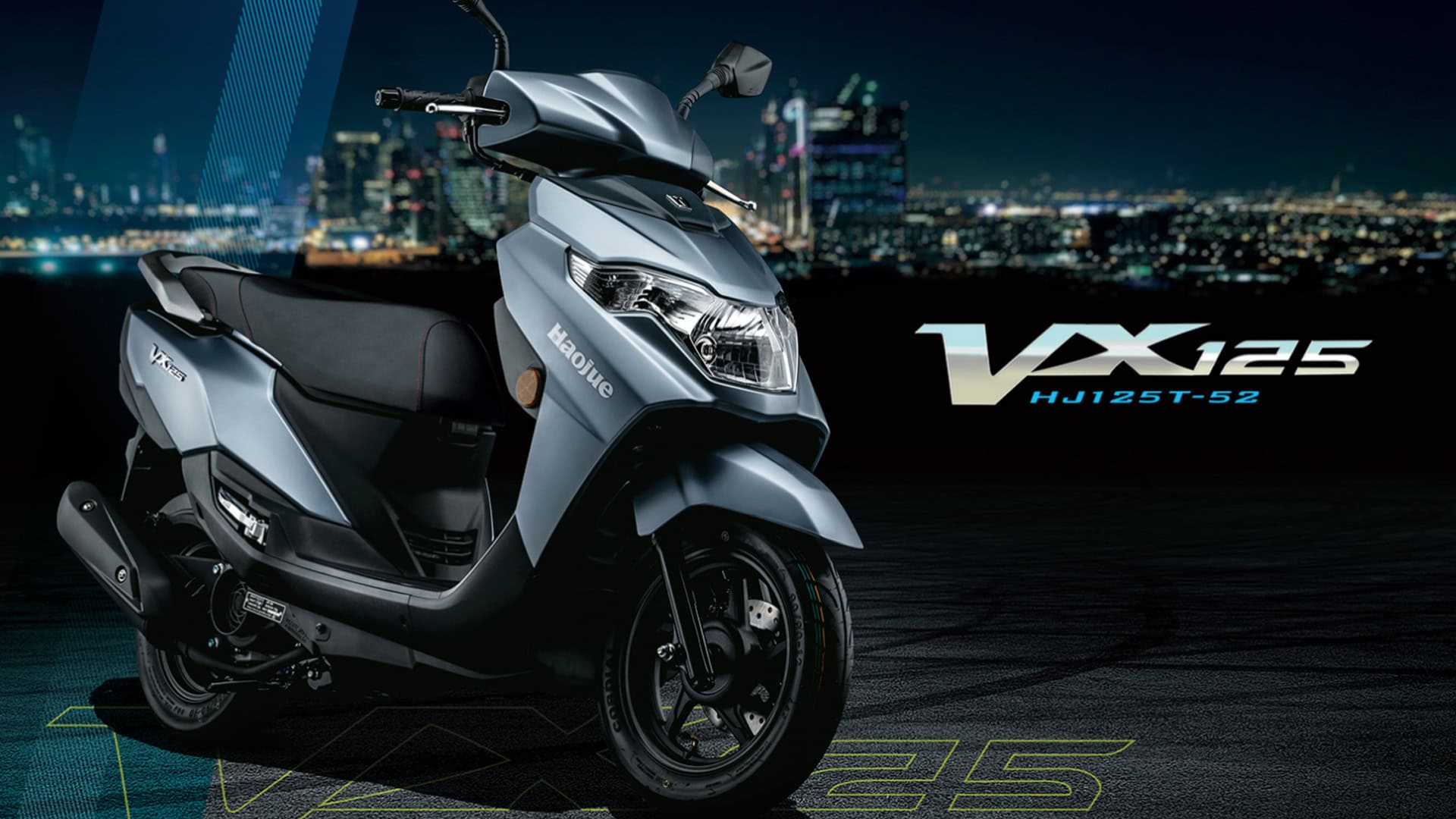

VX125

Ultra-modern styling Bringing Sci-Fi to Life

Overview

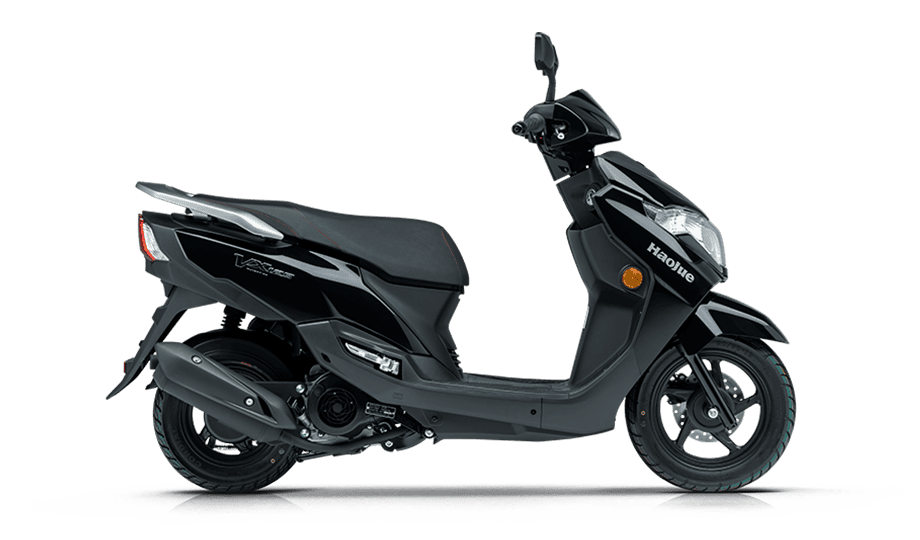

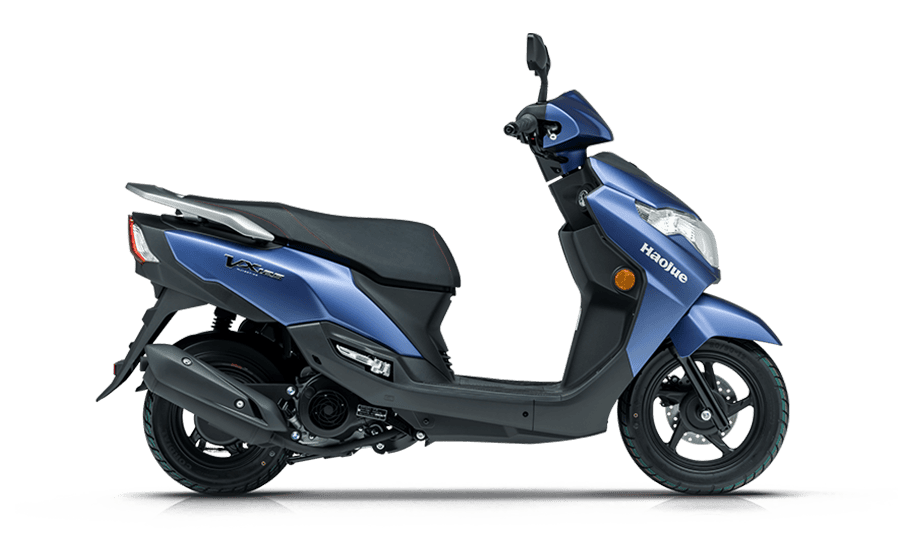

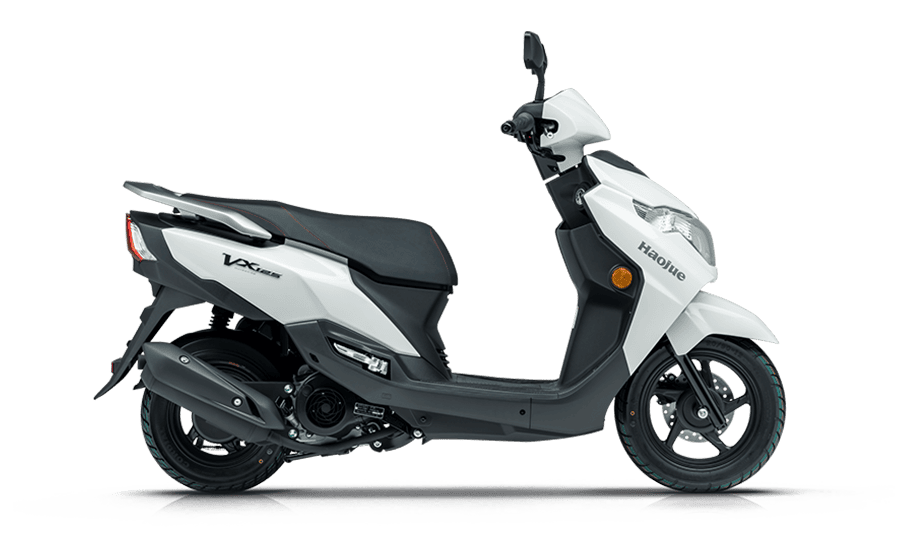

VX125

COLOR OPTIONS

Contact the dealer

Please consult the local dealer for details.

Specification

Construction

Dimensions (L×W×H)

1875mm × 700mm × 1095mm

Wheelbase

1300mm

Curb Mass

116kg

Ground Clearance

120mm

Seat Height

740mm

Fuel Tank Capacity

6.5L

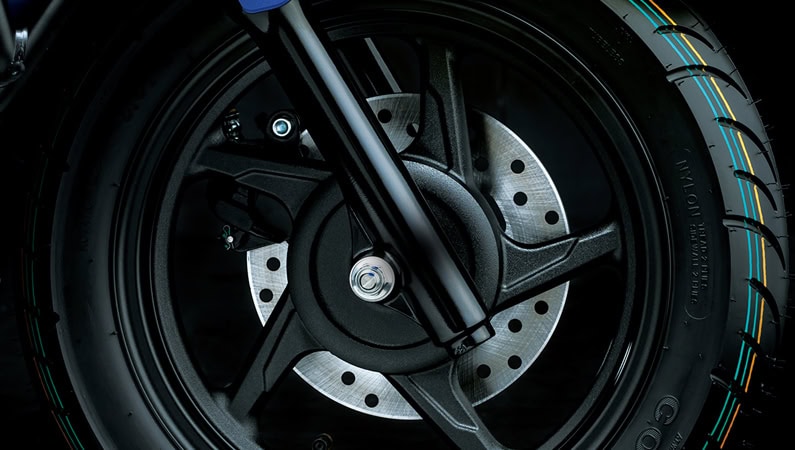

Brake Type

Front:：Disc Rear：Drum

Tire Sizes

Front:：90 / 90-12 44J Rear：100 / 90-10 56J

Engine

TypeTwo Cylinder

Single Cylinder, Air-cooled,4-Stroke

Engine Displacement

124mL

Bore × Stroke

52.4mm × 57.9mm

Compression Ratio

9.3:1

Maximum Power

6.6kW (7500r/min)

Maximum Torque

10.0N•m (5000r/min)

Fuel Supplying

Transmission

Automatic

Starter

Electric；Electric/kick start

Ignition

TDI

Introduce

Key Features

Front footrest space

The length is 280mm, providing enough space to move legs and long travel without tiredness.

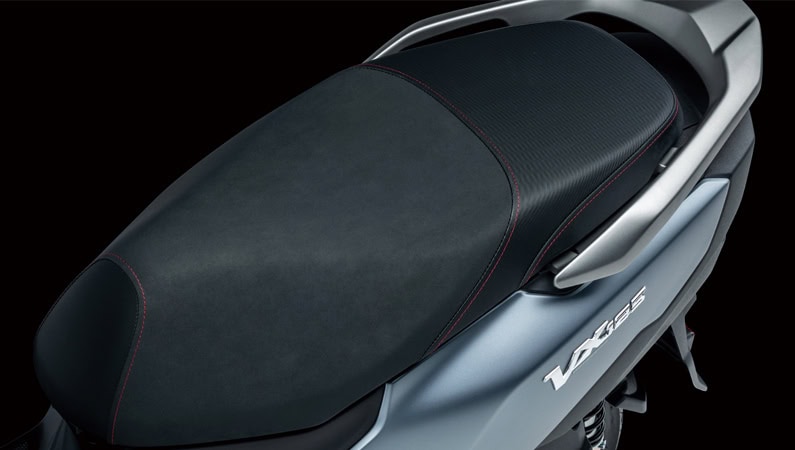

680mm extra long seat pad

The length reaches 680mm,easier for two persons travelling.

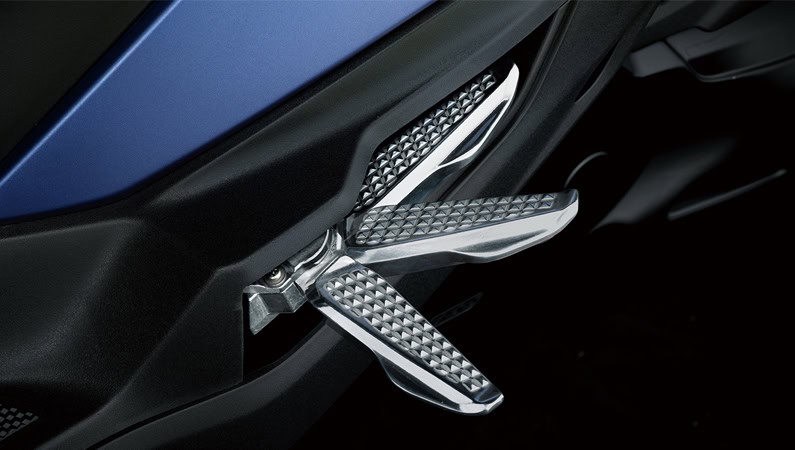

Pop-up rear footrest

Made by alloy, hidden design and easy to pop up.

No Odometer Cable

Electronic induction, no odometer cable.

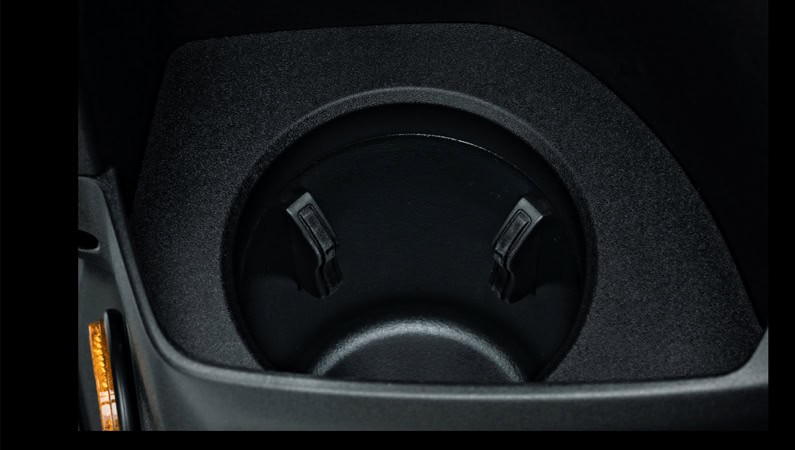

Considerate Design Drink holder of automobile class

Innovated drink holder of new design with automatic tighten function. Whether it is coffee, milk tea or juice, etc., all can be held steadily.

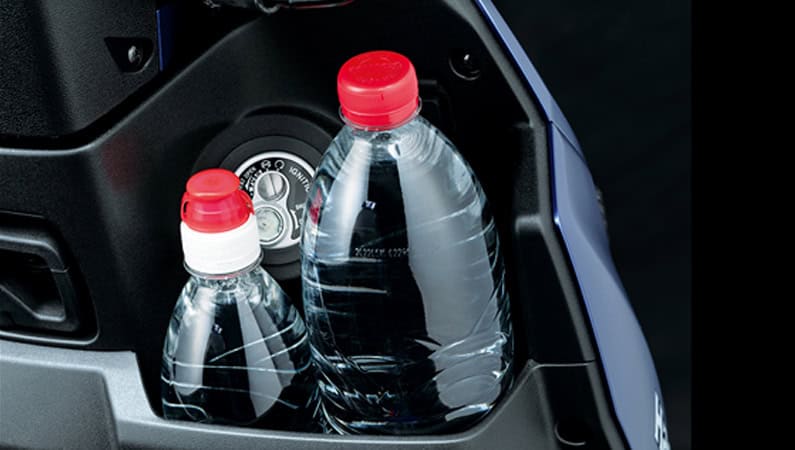

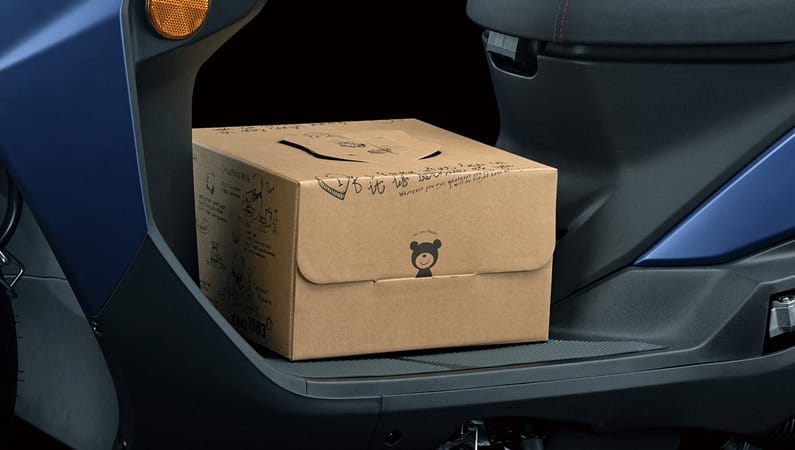

Extra large front luggage box

More space can hold one 1.5L bottled water and one 750ml bottled water at the same time.

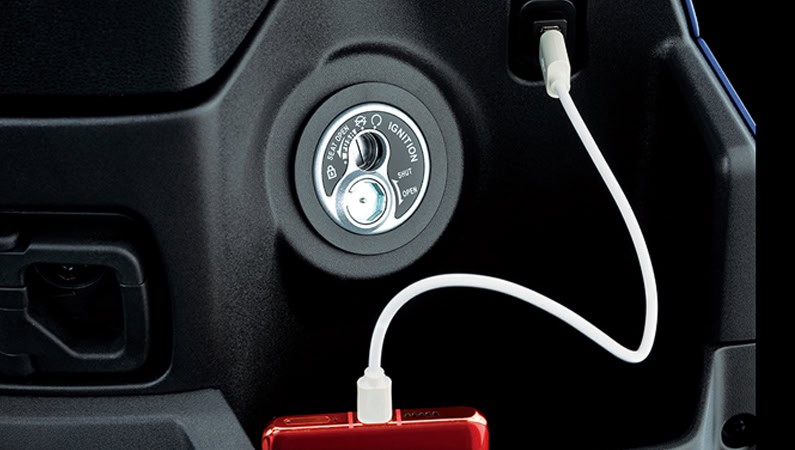

USB Charging port

5V 2A charging port can support charging the cell phone while it is navigating, and keep the cell phone power no change even after long term usage.

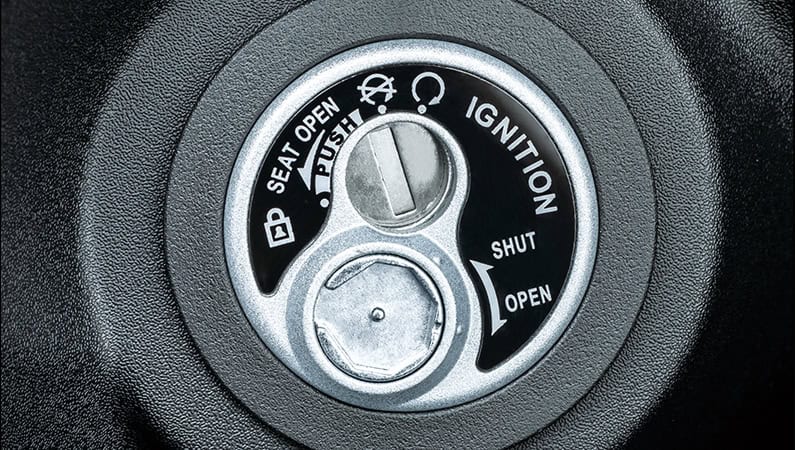

Central magnetic cipher lock
